Pallet changing system WORK-S 800

Pallet changing system WORK-S 800

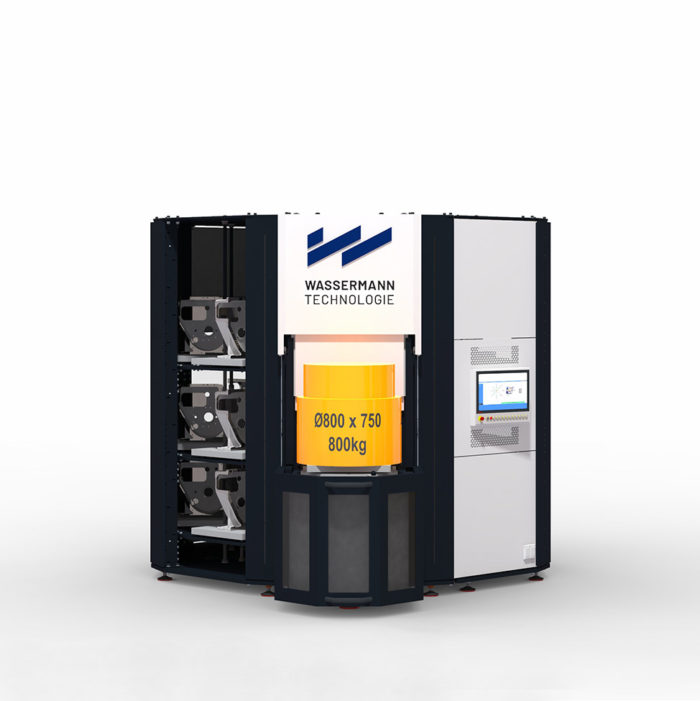

The compact pallet terminal for high transfer weights

Our pallet terminal WORK-S 800-3 is ideal for connecting to all types of machining centers and milling machines, up to a clamping pallet size of 630×630 mm. With 20 pallet spaces, the storage system also offers sufficient reserves for expanding a second machine. With maximum transfer weights of up to 800 kg, it is ideal for large and heavy workpieces.

Advantages

  • Productive – ready for unmanned shifts
  • Space-saving –  High pallet density with minimal footprint
  • Efficient – set up your workpieces parallel with production time
  • Robust – transfer weights up to 800 kg
  • Versatile – operation is possible at multiple machines and centers

Technical information

Technical data

storage architecture

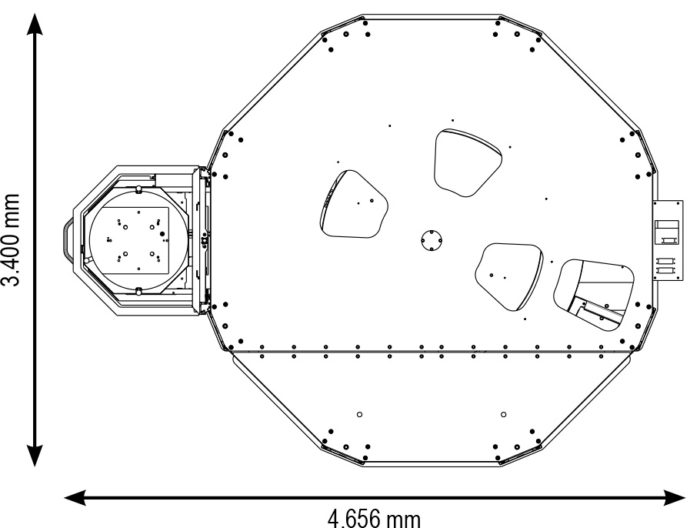

Compact circular storage system

Pallet positions (max.)

20 pcs.

Pallet size

630×630 mm, 400×400 mm, 320×320 mm, Clamping pallet mix, Individual clamping pallet

max. workpiece diameter

800 mm

max. workpiece height

750 mm

Transfer weight

800 kg

Setup stations

up to 2

Show all data

Your path
to a non-binding offer

  1. Configure product in any way you desire
  2. Note further requirements in the text field
  3. Send inquiry

We'll contact you if we have any questions!

Not the right parameters?
Now you can configure individually!


0 pcs. 100 pcs.

0 mm 800 mm

0 mm 750 mm

0 kg 800 kg




Show all filters
Options:
i
If needed, up to two machines can be connected to one storage unit.
i
Additional set-up location (max. 2 pcs.)

The setup station parallel to production time is realized ergonomically and offers maximum safety for your employees thanks to the mechanical locking.
The setup stations can be configured on any side of the terminal.
For the architecture version of the compact round storage system, up to 2 set-up stations can be planned for setup parallel to production.
It is to be noted that, depending on the version, from 1 to 3 fewer workpiece locations can be used in the store.
i
If needed, multiple pallet types can be used at the same time.

The positions can be allocated individually.

This option is available for the following pallet sizes:

400mm x 400mm
320mm x 320mm
d 148mm

Please note that this option is not available for 630mm x 630mm pallets.
i
This option offers in-house pallet management within the software package

The control technology is implemented via ProCam.
i
On request, we can retrofit machines that are not prepared for automation at the factory.
A zero point clamping system including media guidance is retrofitted for this purpose.

Send basic data of the machine tool
