Pallet changing system WORK-S 400

Pallet changing system WORK-S 400

The premium round shelf with plenty of room for customization

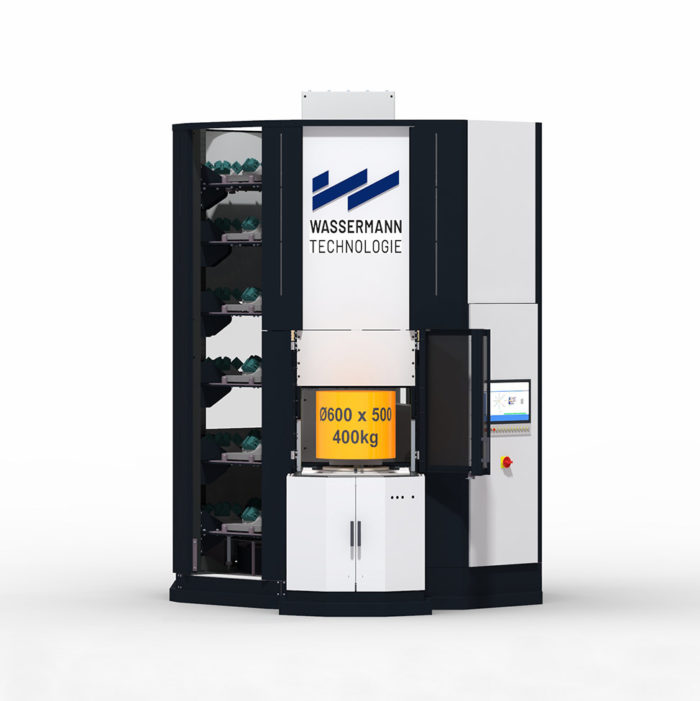

Our pallet terminal WORK-S 400-6 is ideal for connecting to all types of machining centers and milling machines, up to a clamping pallet size of 400×400 mm. With 44 pallet spaces that can be flexibly occupied, the terminal also offers sufficient reserves for expanding a second or third machine. Whether it's small 148 mm pallets or clamping towers with multiple workpieces, this storage system can do it all!

Advantages

  • Productive – ready for unmanned shifts
  • Space-saving –  High pallet density with minimal footprint
  • Efficient – set up your workpieces parallel with production time
  • Robust – transfer weights up to 400 kg
  • Versatile – operation is possible at multiple machines

Technical information

Technical data

storage architecture

Compact circular storage system

Pallet positions (max.)

44 pcs.

Pallet size

400×400 mm, 320×320 mm, Ø148 mm, Clamping pallet mix, Individual clamping pallet

max. workpiece diameter

600 mm

max. workpiece height

500 mm

Transfer weight

400 kg

Workpiece levels

6, 4

Show all data

Your path
to a non-binding offer

  1. Configure product in any way you desire
  2. Note further requirements in the text field
  3. Send inquiry

We'll contact you if we have any questions!

Not the right parameters?
Now you can configure individually!


0 pcs. 100 pcs.

0 mm 800 mm

0 mm 750 mm

0 kg 800 kg



Show all filters
Options:
i
Additional set-up location (max. 2 pcs.)

The setup station parallel to production time is realized ergonomically and offers maximum safety for your employees thanks to the mechanical locking.
The setup stations can be configured on any side of the terminal.
For the architecture version of the compact round storage system, up to 2 set-up stations can be planned for setup parallel to production.
It is to be noted that, depending on the version, from 1 to 3 fewer workpiece locations can be used in the store.
i
If needed, multiple pallet types can be used at the same time.

The positions can be allocated individually.

This option is available for the following pallet sizes:

400mm x 400mm
320mm x 320mm
d 148mm

Please note that this option is not available for 630mm x 630mm pallets.
i
This option offers in-house pallet management within the software package

The control technology is implemented via ProCam.
i
On request, we can retrofit machines that are not prepared for automation at the factory.
A zero point clamping system including media guidance is retrofitted for this purpose.
